Abrasive belt tools

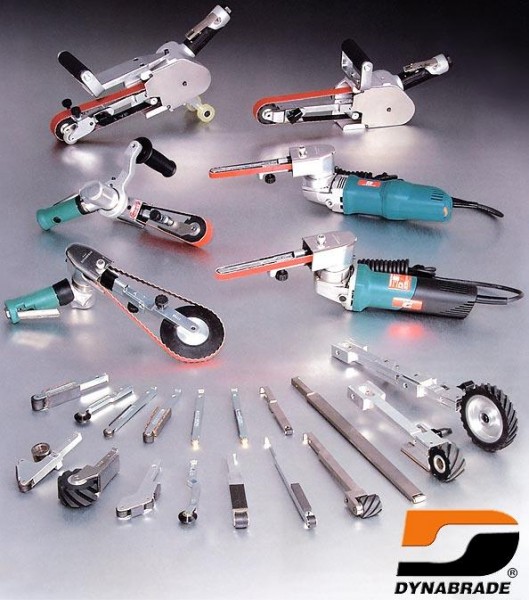

Dynafile I, Dynafile II, Dynafile III, Dynangle abrasive belt tools

DYNABRADE 14000; 40320; 40352; 15003; 15300 and other

Download full catalogue

Grind, deburr, blend, polish, finish and more. For use on metal, plastic, fiberglass, composites, rubber, glass and stone. Grind from contact wheel or platen pad. Finish and polish using slack of belt. Tools includes Contact Arm for standard use. Also accepts a variety of additional Contact Arms.

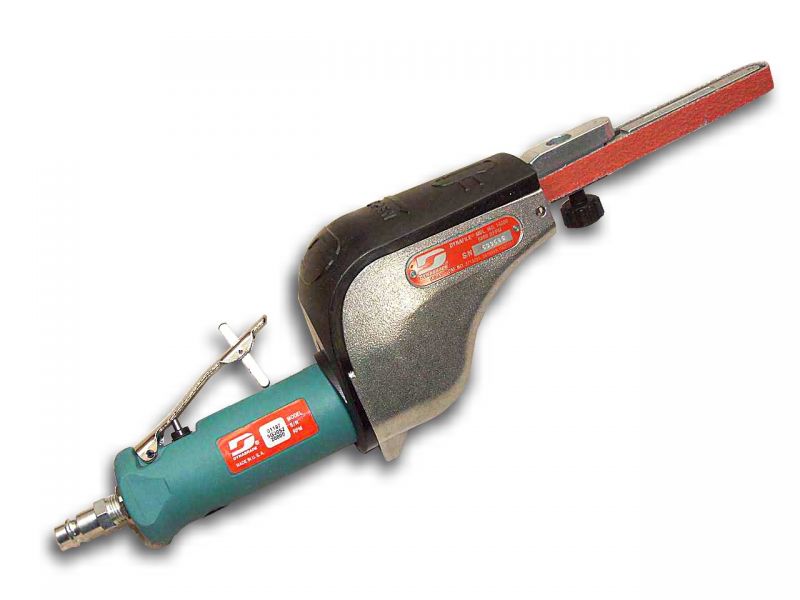

Model 14000 for (3-13 mm x 610 mm) Belts

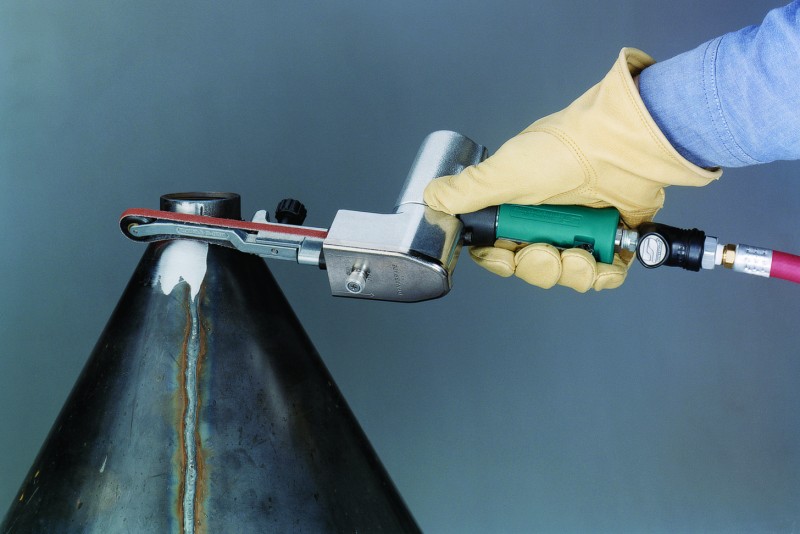

Model 40320 for (6-19 mm x 457 mm) Belts

Model 15003 for (3-13 mm x 305 mm) Belts

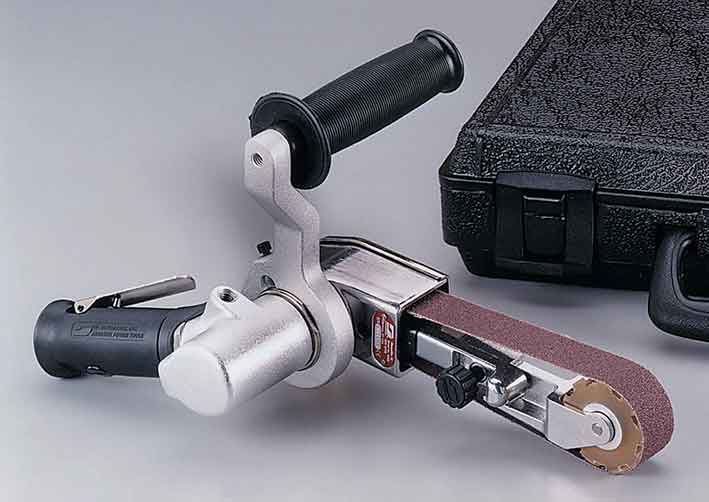

Model 15300 for (6-25 mm x 457 mm) Belts

Model 14200 for (25 mm x 457 mm) Belts


Lightweight composite ( metal ) belt guard easily detaches for quick abrasive belt change; simple belt tracking adjustment knob. Hard and soft platen pads mount onto Contact Arms for heavy grinding or contour polishing. Motor easily adjusts to the most comfortable throttle lever position. Compact tool is ideal for work in tight spots.



Motor power
298 - 895 W
Revs motor
13000 - 25000 RPM
Air flow
566 - 1020 L/min
Sound level
77 - 92 dB
Air pressure
6,2 Bar
